Anti-ADAM1B Antibody, Rat Monoclonal (#158)


SKU: 73-007 Research Area: Applications:


ADAM1B may play a role in spermatogenesis, sperm maturation and fertilization. Molecular weight inferred from DNA sequence of Adam1B is 89,369 with 806 amino acids. N-terminal signal peptide with 33 amino acids from this protein is processed to give propeptide, which undergoes further processing. By western blotting, ADAM1B is detected in testis extract at 120 kDa position, which is due to glycosylation and in sperm extract at 60 kDa (Fig.1 & 2. Ref. 1 & 2). The prodomain and the metalloprotease-like domain are cleaved during the epididymal maturation of the spermatozoa



Reactivity: Mouse ADAM1B (Non reactivity with ADAM1A was confirmed by WB using recombinant ADAM1A and ADAM1B proteins).

Immunogen: Mouse sperm

Form: Purified monoclonal antibody (IgG) 1mg/ml in PBS, 50% glycerol, filter-sterilized. Azide- and carrier-free.

Storage: Shipped at 4℃ and store at -20℃ (Do not store below -20℃).



Western blotting (1/100~1/500)

Immunohistochemistry (1/100~1/300)

Immunofluorescence staining (to be determined by user)

*For IF, Clone #57 (#73-010) is recommended



Database Links:

UniProtKB Q8R534 (mouse ADAM1b)


Reference: This antibodyhas been used in the following publications.


Ikawa M. et al. Calsperinis a testis-specific chaperone required for sperm fertility. J Biol Chem. 2011 ;286:5639-46. PMID: 21131354 WB (mouse)


Tokuhiro K. et al. Protein disulfide isomerase homolog PDILT is required for quality control of sperm membrane protein ADAM3 and male fertility. Proc Natl Acad Sci U S A. 2012 ;109:3850-5. PMID: 22357757 WB (mouse)


Yamaguchi R et al. Mice expressing aberrant sperm-specific protein PMIS2 produce normal-looking but fertilization-incompetentspermatozoa. Mol Biol Cell. 2012 Jul;23(14):2671-9. PMID: 22621904  WB (mouse)



Fig.1 Differentiation stage-specific expression of ADAM1B in mouse testis as examined by Western blotting with anti-ADAM1B antibody. Testis lysates collected from mice of different ages were examined by Western blotting. ADAM1B appeared as a faint signal at 3 weeks of age


Fig.2 Weatern blot analysis of Adam1B in mouse testis and sperm lysates. The antibody was used at 1/100 dilution. The Adam1B synthesized in testis (120 kDa) is proteolytically processed into smaller form (60 kDa) in sperm during the epididymal maturation of the spermatozoa. By western blotting, ADAM1B is detected in testis extract at 120 kDa position, which is due to glycosylation and larger than predicted size of 89 kDa from the sequence.

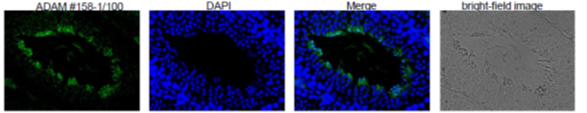

Fig.3 Immunohistological staining of ADAM1B in mouse testis using anti-ADAM1B antibody (#158). A section of formalin fixed and paraffin embedded mouse testis was treated with the anti-ADAM1B antibody (#158) at 1/100 dilution after deparaffization and antigen retrieval. The 2nd antibody, anti-rat IgG conjugated with AF488 (Abcam) was used at 1/1,000 dilution. DNA was stained with DAPI and the merged image was shown (Merge). The bright field microsopic picture of the same region was shown on the right.


Related product:

73-010 Anti-Mouse ADAM1B (Clone #57) IF, IHC

Title Type Size
73-007 anti-ADAM1B antibody, rat monoclonal (158) 03212018 application/pdf 248 KB
